Compact touchscreen control for Balboa BP spa packs – precise, modern and space-saving.
Product Overview

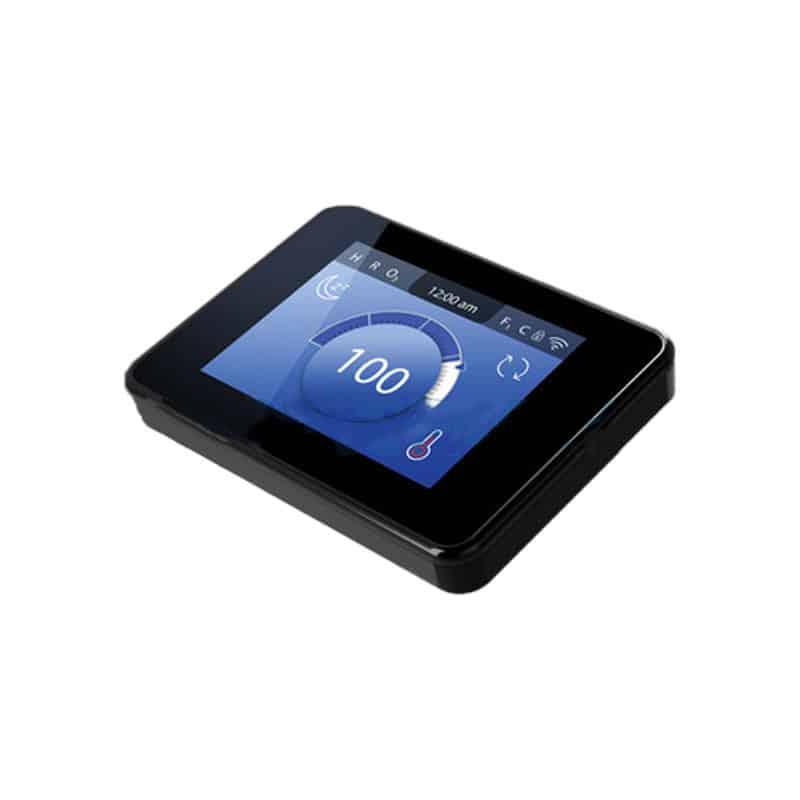

The Balboa SpaTouch Mini Topside Control Panel is a compact 2.8” colour touchscreen designed exclusively for Balboa BP Series spa control systems. Engineered for modern hot tubs and spas, this premium touchscreen panel delivers intuitive control over temperature, pumps, jets, lighting and filtration settings in a sleek, space-saving format.
Featuring advanced water-friendly capacitive touch technology, the SpaTouch Mini responds accurately even with wet hands. The fully potted electronics provide a watertight seal, protecting internal components from moisture, heat and spa-side conditions for long-term reliability.
Ideal as an upgrade from TP800 or TP900 panels, or as a direct replacement for faulty topsides, the SpaTouch Mini offers professional-grade Balboa performance in the smallest SpaTouch format available.
Key Features & Benefits
-
2.8” High-Resolution Colour Touchscreen – Clear, vibrant display for easy spa control in all lighting conditions
-
Designed for Balboa BP Series Systems – Compatible with BP200, BP600, BP6013 and BP2100 models (software v7.0+)
-
Water-Friendly Capacitive Touch – Responsive touchscreen operation, even with wet fingers
-
Fully Potted Waterproof Electronics – Sealed motherboard protects against moisture and humidity
-
Compact, Space-Saving Design – Ideal for tight installations or secondary control locations
-
Tap-to-Wake Activation – Prevents accidental activation while maintaining quick access
-
7-Foot (2.1m) Cable Included – Flexible installation without extension cables
-
4-Pin Molex Connector – Secure, reliable data connection
-
Impact-Resistant Construction – Built for demanding spa environments
-

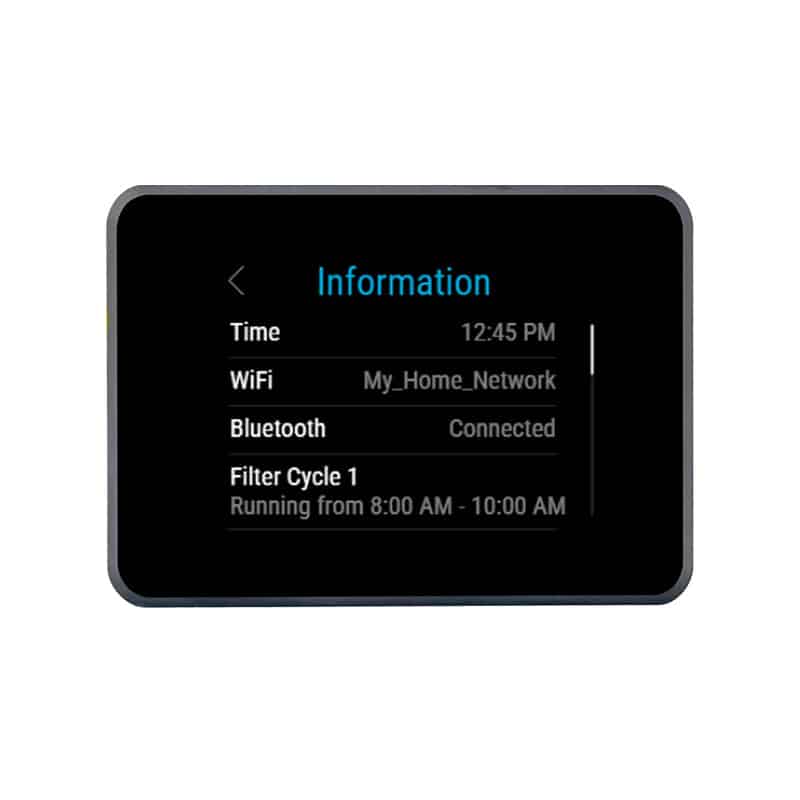

Full Spa Function Control – Temperature, pumps, jets, lighting, filtration cycles and diagnostics
-

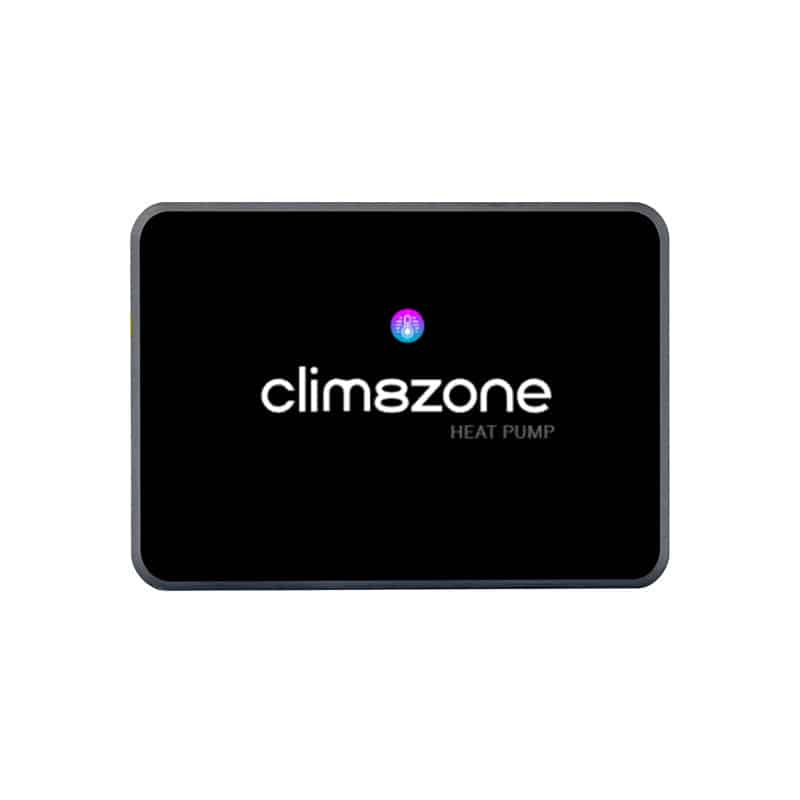

Clim8zone Compatible – Works with Balboa Clim8zone & Clim8zone II heat pumps
-

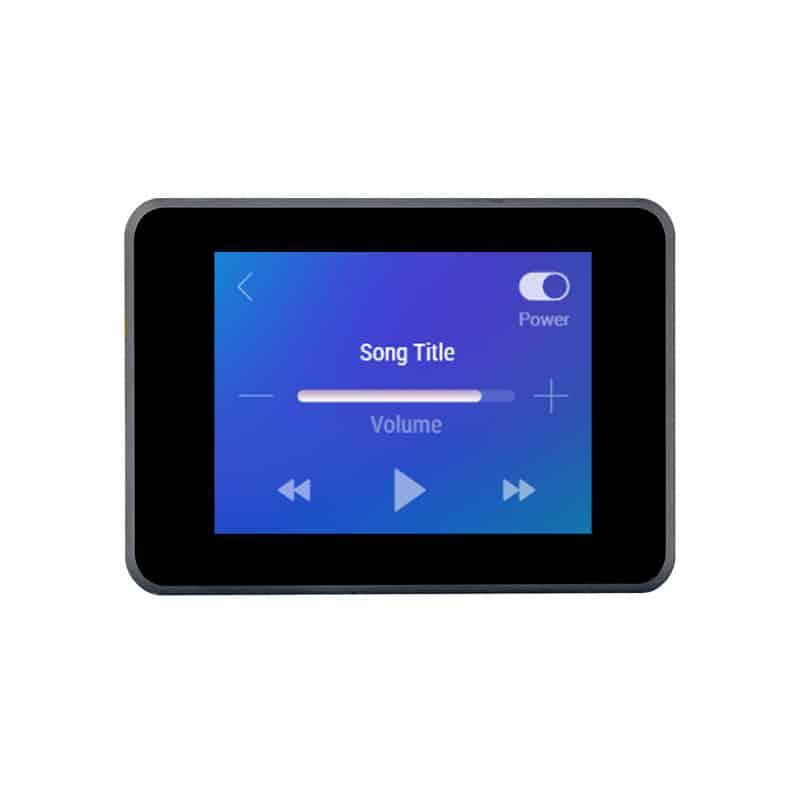

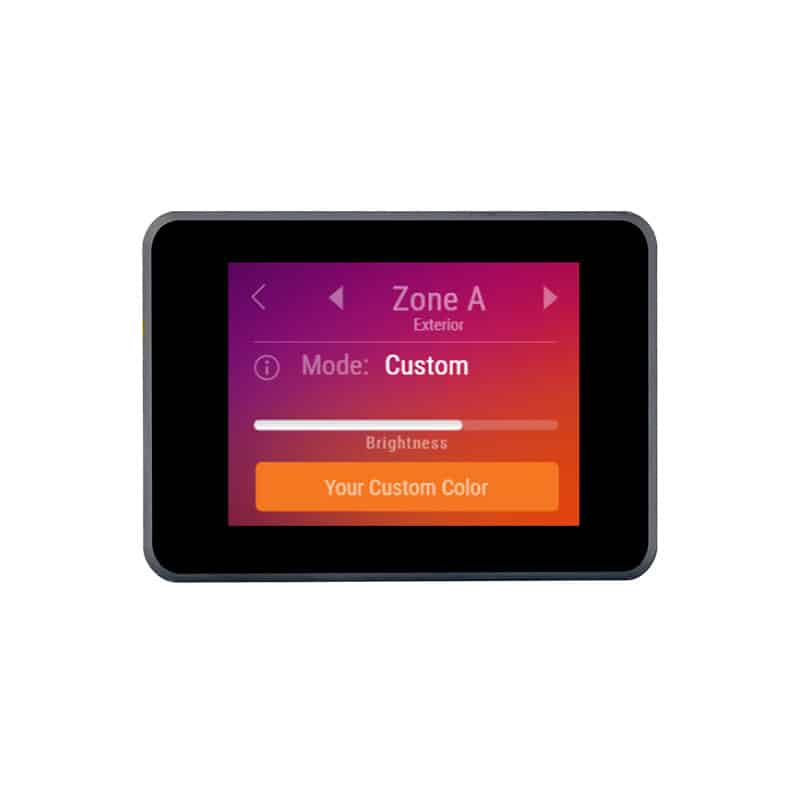

Chromazon3 & bba3 Ready – Supports lighting and Bluetooth audio systems
Technical Specifications
-
Display Size: 2.8” (71mm diagonal)
-
Screen Dimensions: 86mm × 61mm
-
Panel Dimensions: 87mm × 62mm
-
Cutout Size: 72mm × 50mm (rectangular) or 51mm diameter (round)
-
Cable Length: 2.1 metres (7 feet)
-
Connector Type: 4-Pin Molex (grid formation)
-
Operating Voltage: 12V DC
-
Touch Technology: Capacitive (water-friendly)
-
Protection: Fully potted, watertight sealed
-
Minimum Software Version: 7.0
-
Colour: Black
Manufacturer Part Numbers: 57380, 57381, TS-ST380
Compatibility
Compatible With Balboa BP Series Spa Packs
-
BP200G1, G2, G3
-
BP200UX
-
BP600
-
BP6013G1, G2, G3
-
BP2100G1, G2, G3
Also compatible with:
-
Balboa Clim8zone & Clim8zone II
-
Chromazon3 lighting
-
bba3 Bluetooth Audio
-
ControlMySpa WiFi module
-
Balboa Worldwide App
Not Compatible With
-
VS Series (VS100, VS300, VS500, VS501)
-
GS Series (GS100, GS500, GS501, GS523)
-
EL / GL Series
-
Non-Balboa control systems
-
BP systems running software below v7.0
Always verify your spa pack model and connector type before purchasing.
Why Choose the SpaTouch Mini?
-
Compact design ideal for modern spa installations
-
Direct replacement for TP800 and TP900 panels
-
Premium Balboa OEM quality
-
Reliable touchscreen control in wet spa environments
-
Fully waterproof sealed electronics for long-term durability
