The Gecko in.temp Mini 3kW Heat Pump is a compact, ultra-efficient heating solution designed for small to medium hot tubs. Using renewable heat from the air and eco-friendly R32 refrigerant, it offers up to 75% energy savings compared with traditional 3kW electric heaters. Despite its small footprint, it delivers whisper-quiet operation at just 51dB(A) and performs reliably from 0°C to 43°C.
Key Features
-
High Efficiency Heating: 3.03kW output at 24°C ambient, COP up to 4.41; 3–4× more efficient than electric heating.
-

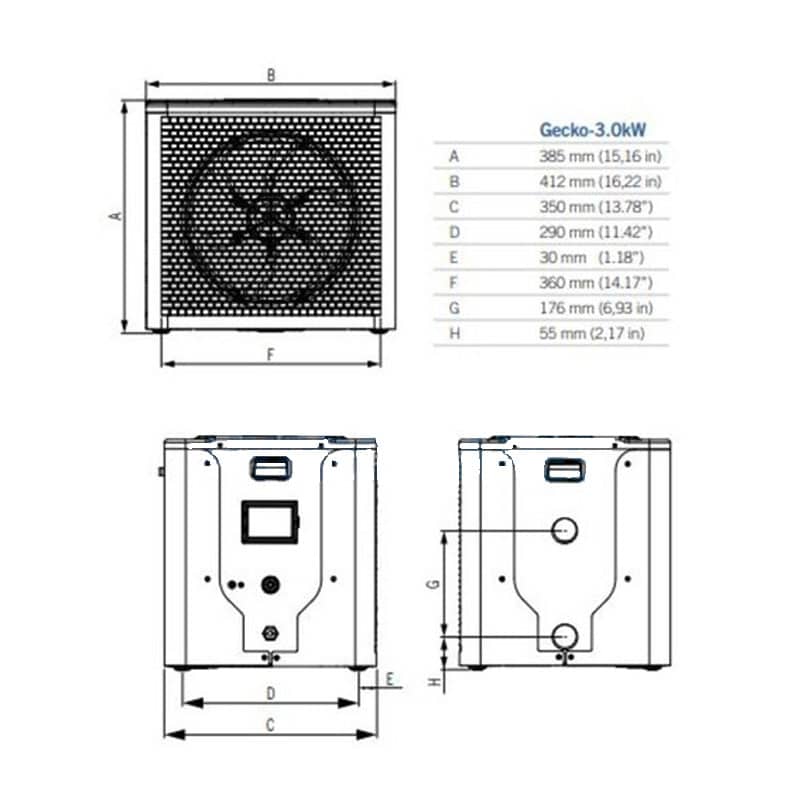

Compact Design: Only 412 × 385 × 350mm — perfect for tight installation spaces.
-
Quiet Running: Just 51dBA, quieter than normal conversation.
-

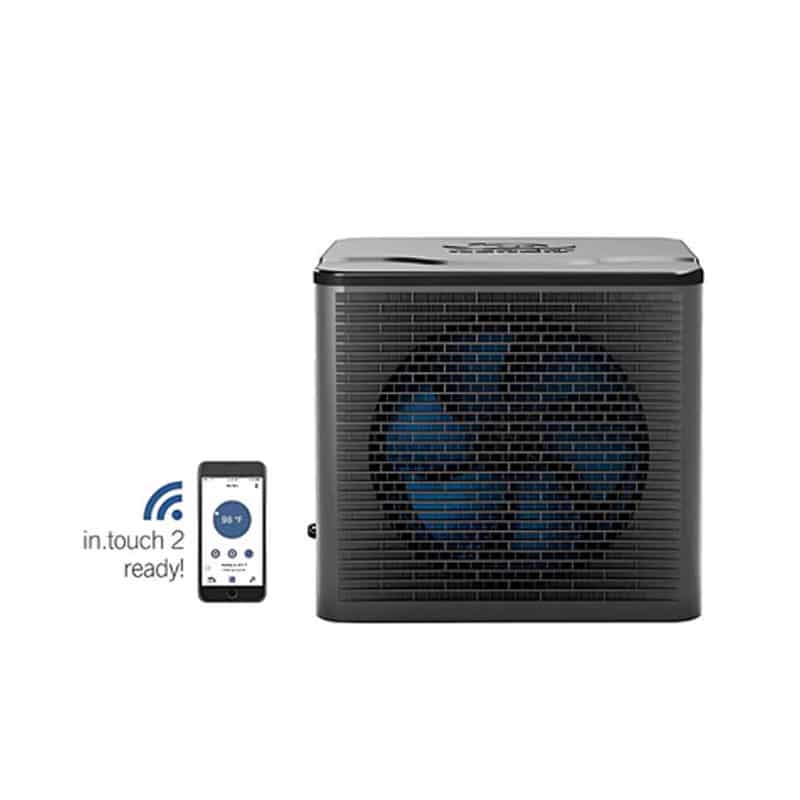

Smart Gecko Integration: Plug-and-play with IN.YE, IN.YT, and IN.YJ systems using RS-485. Compatible with all major Gecko keypads and the in.touch 2 mobile app.
-
Three Heating Modes:
-
Eco Heat – heat pump only (maximum savings)
-
Smart Heat – heat pump with electric backup
-
Electric Mode – traditional element heating
-
-
Durable Construction: Titanium heat exchanger, rotary compressor, IPX4 weather resistance.
-
Safety Systems: Flow protection, pressure protection, overload protection, freeze protection, auto-restart and self-diagnostics.
Performance & Energy Savings
-
Optimal output: 3.03kW (A24/W26)
-
Cooler conditions: 1.95kW (A15/W26)
-
Power consumption: 0.68–0.93kW
-
Real-world savings: Up to £1,200 per year vs. a standard 3kW heater.
Suitable Spa Sizes
Ideal for 1,000–1,800L hot tubs (2–4 person spas).
Estimated heat-up (24°C ambient):
-
1,000L → +10°C: ~3.8 hours
-
1,500L → +10°C: ~5.7 hours
-
1,800L → +10°C: ~6.9 hours
Technical Summary
-
Refrigerant: R32 (180g)
-
Flow Rate: 1.2–2.27 m³/h
-
Connections: 1.5″ (38mm)
-
Noise: 51.2 dB(A)
-
Weight: 21.5kg
-
Water Resistance: IPX4
Installation Requirements
-
Requires a 3-valve bypass system
-
Minimum clearances: 0.7m front/rear, 0.3m sides
-
Install on a flat, ventilated outdoor surface
-
Powered through Gecko control system (no separate circuit needed)
