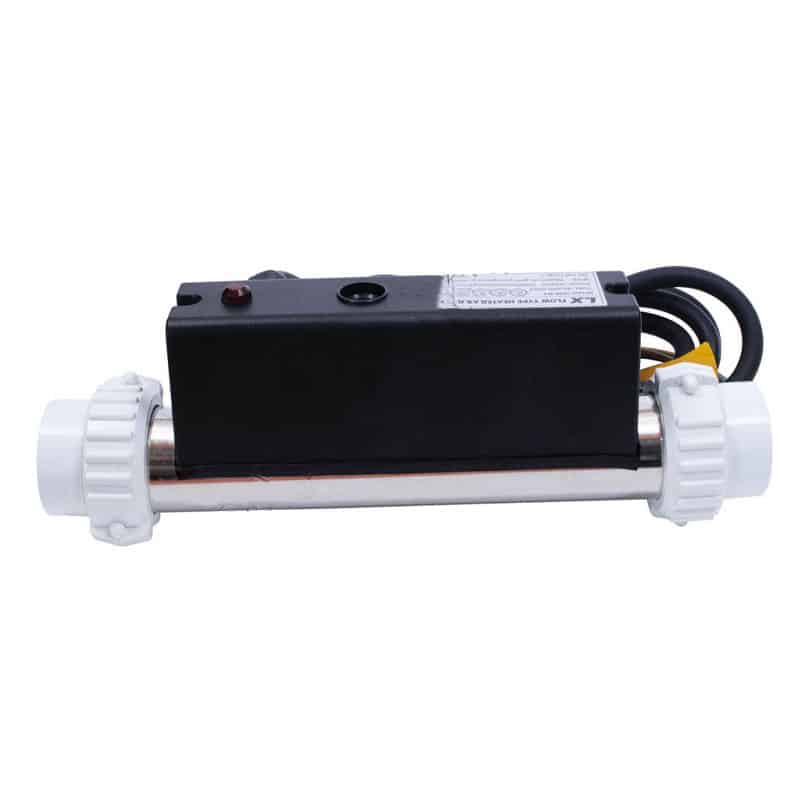

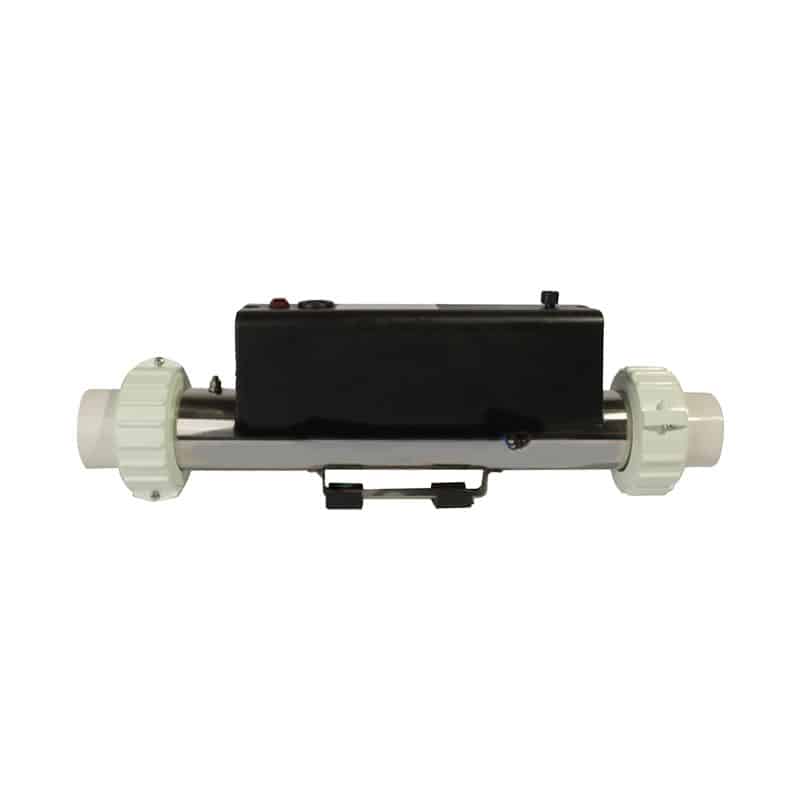

LX H30-R1 3.0KW 1.5 Inch Heater With Built-in Sensor
LX 3KW Heater Assembly
A compact and efficient 3KW heater unit equipped with integrated sensors and a side-mounted thermoregulator, making it suitable for a wide range of spa systems and custom-built applications.
Key Specifications:
-
Power Consumption: 13.6 Amps
-
Sensor Integration: Internal sensor managed by an external thermoregulator located on the module side
-
Flow Detection: Controlled via a pressure switch with an additional cable; requires adequate back pressure to function properly
Compatibility:
-
Designed to fit most Chinese spa models with minimal plumbing modifications
-
Ideal for use as a standalone heater in custom or remote installations
Connections & Mounting:
-
1.5″ white plastic female unions for easy plumbing connection
Additional Features:
-
Built-in high-limit thermal cutout for safety
-
IPX5-rated and CE-certified for durability and compliance
IMPORTANT: This Unit is longer than the standard unit. Please ensure when installing that there is adequate water flow to generate back pressure for the sensor.
Suitable for Chinese Spas
