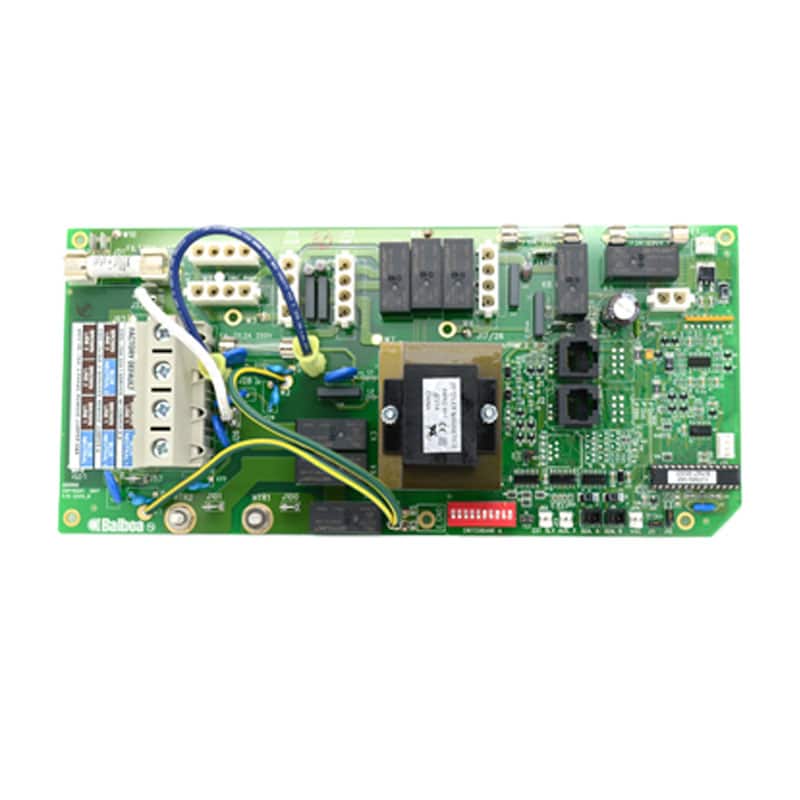

    Balboa GS501SZ PCB Board

    £343.02


    Meet the Balboa GS501SZ PCB Board

    • Manufacturers part number: 54516-02
    • Dimensions: Length: 280mm Height: 130 mm
    • Compatible with:GS501SZ control box. Topside controls from the serial standard VL range such as the VL700S and the VL701S. Systems fitted with topside controls from the serial standard VL range such as the VL600S, VL700S and VL701S, also suitable for upgrades. Northwind Hot Tubs, Leisure Bay and more.Works with one version of the MS1500E but best to buy the original version in this case.

    We are Proud to be 1 of the UK’s official distributors of Balboa hot tub parts.

    Share this product

    Balboa GS501SZ PCB Board

    This PCB is used as a replacement for an existing GS501SZ control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.

    • Power: Volts: 230 Hz:50
    • Pump 1:Single or dual speed + circulation pump if required
    • Air Blower:Yes (optional)
    • Heater: Yes
    • Ozone: Yes
    • Light: 12 volt
    • Sensor style: M7 x 2
    • Pressure Switch: No
    • Dimensions: Length: 280 mm Height: 130 mm
    • Compatible with: GS501SZ control box. Topside controls from the serial standard VL range such as the VL700S and the VL701S. Systems fitted with topside controls from the serial standard VL range such as the VL600S, VL700S and VL701S, also suitable for upgrades. Northwind Hot Tubs, Leisure Bay and more.Works with one version of the MS1500E but best to buy the original version in this case.

    *SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.

    IMPORTANT INFORMATION:
    Circuit boards and other computerised equipment are exempt from our returns policy if they have been opened or installed.
    If the board is suspected as being faulty, it will need to be returned to us within the warranty period and will then be forwarded to the manufacturer for inspection. If deemed to be faulty, we will replace under warranty. If the board is not at fault or is found to have been damaged due to installation, an additional charge will be required to cover the costs of shipping and return.

    This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
