    Perseus 460 Whirlpool Pump

    £292.21

    In stock

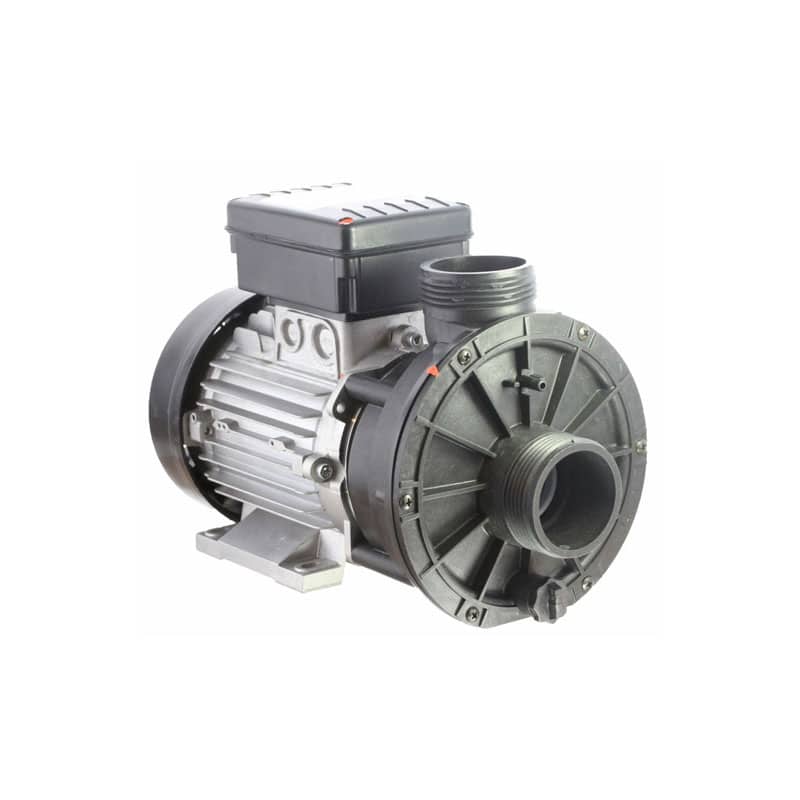

    Perseus 460 Whirlpool Pump

    Complete replacement Hydroair Perseus HA460 pump designed specifically for use with spas, hot tubs and whirlpool baths. This compact high-performance pump from Hydroair delivers a high flow output for its size, silent running and comes complete with a built-in pneumatic air switch for use with whirlpool bath applications.

    • Power reference: 1.6 HP
    • Volts: 230
    • Hz: 50
    • Motor HP Low / High: 1.61
    • Wet End Impellor HP: 1.5
    • RPM Low / High: 2800
    • Amps Low / High Speed: 6.2
    • Plumbing connections: 1.5 inch
    • Electrical connections: Comes with plain cable attached
    • Length: 335 mm Height: 210 mm Depth: 175 mm
    • Commonly used with:Larger whirlpool bath settings and also some smaller Hot Tubs or Spas.
    Share this product

    Perseus 460 Whirlpool Pump

    Complete replacement Hydroair Perseus HA460 pump designed specifically for use with spas, hot tubs and whirlpool baths. This compact high-performance pump from Hydroair delivers a high flow output for its size, silent running and comes complete with a built-in pneumatic air switch for use with whirlpool bath applications.

    Centre Discharge – This means that the inlet and outlet plumbing union connections are in-line with each other as opposed to the more common side discharge union connections which are offset from each other.

    These circulation pumps can be found on older Spaform Spas and large whirlpool baths. Replaces older Hydroair Perseus 460 pump models.

    • This is a 1-speed circulation pump so the single low speed is for the filtration and heating of your spa or jets operation on a Whirlpool bath.
    • Pump wet end connects to 1.5-inch plumbing unions on the inlet and outlet. Both connections have a 63mm outside thread diameter and you can use 1.5-inch union O’rings to seal the plumbing union connections.
    • Pump wet end can be rotated from the standard 12 O’clock position to 3 O’clock or 9 O’clock position easily by removing the four bolts that attach the wet end to the motor.
    • Wiring – This replacement Perseus HA460 pump is supplied with a new cable but you may need to swap the cable over from your old existing Hydroair pump as a control box connection type may vary. You will have three wires, live for the single high speed (Brown or Black). Neutral (Blue or White) and Earth (Green).
    • Supplied with an air switch on the electrical box but can disregard if unneeded.
    • The Perseus range has been designed to offer near silent running during operation.

    This pump is a lot stronger than your average whirlpool bath pump, so if you are planning to fit this as an alternative or a bespoke project you may wish to check performance graphs first.
