Balboa Spa Touch 3 Clear Panel Topside Control – 5” Touchscreen for BP Series Spa Systems

Upgrade your spa experience with the Balboa Spa Touch 3 Clear Panel Topside Control, the latest generation 5-inch capacitive touchscreen designed exclusively for Balboa BP Series spa systems. Featuring a modern transparent frame, enhanced 2x brighter display, and fully waterproof construction, this premium topside control delivers intuitive spa management with crystal-clear visibility in all lighting conditions.

Engineered by Balboa Water Group, this genuine replacement panel (G8535-03) replaces earlier SpaTouch 3 models (57254, 57255) and integrates seamlessly with compatible BP Series control packs.

Key Features & Benefits

• 5” high-resolution capacitive colour touchscreen (127mm diagonal)

• 2x brighter display than SpaTouch 2 for improved daylight visibility

• Clear/transparent bezel for modern spa styling

• Fully potted waterproof electronics for durability in humid environments

• Genuine Balboa replacement part – updated reference G8535-03

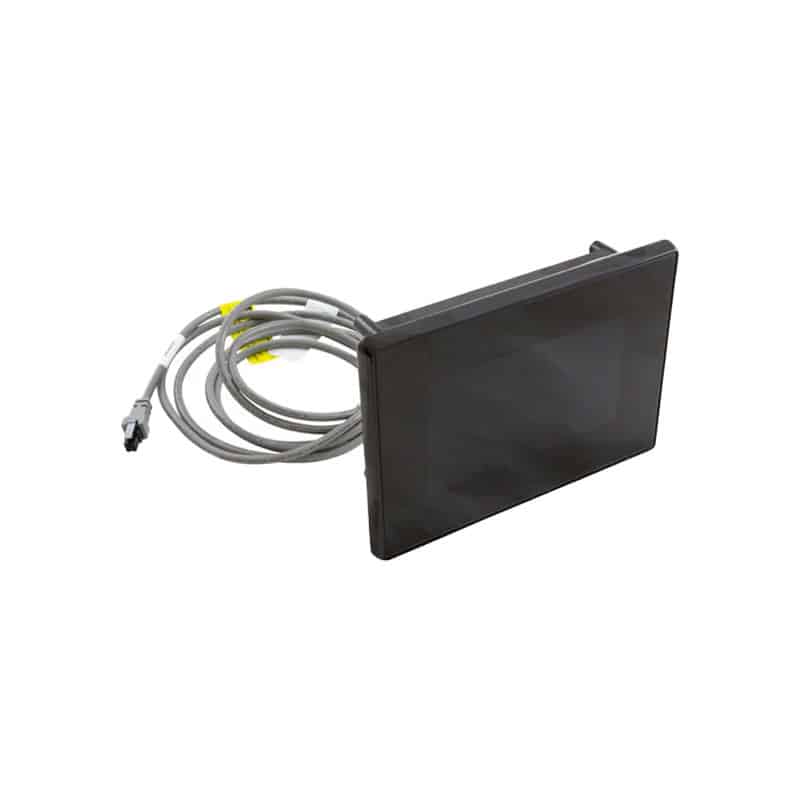

• 7ft (2.1m) cable with 4-pin Molex connector

• Compatible with BP Series systems supporting TP800 and TP900 panels

• Icon-driven navigation for temperature, jets, lighting and settings

• Sleep/Wake functionality for energy efficiency

• Compatible with Balboa bba™2 Bluetooth Audio systems

• No overlay required – supplied as a complete ready-to-install unit

Technical Specifications

• Compatible System: Balboa BP Series

• Part Numbers: G8535-03, 57254, 57255, G8535

• Display Type: Capacitive colour touchscreen

• Display Size: 5 inches (127mm)

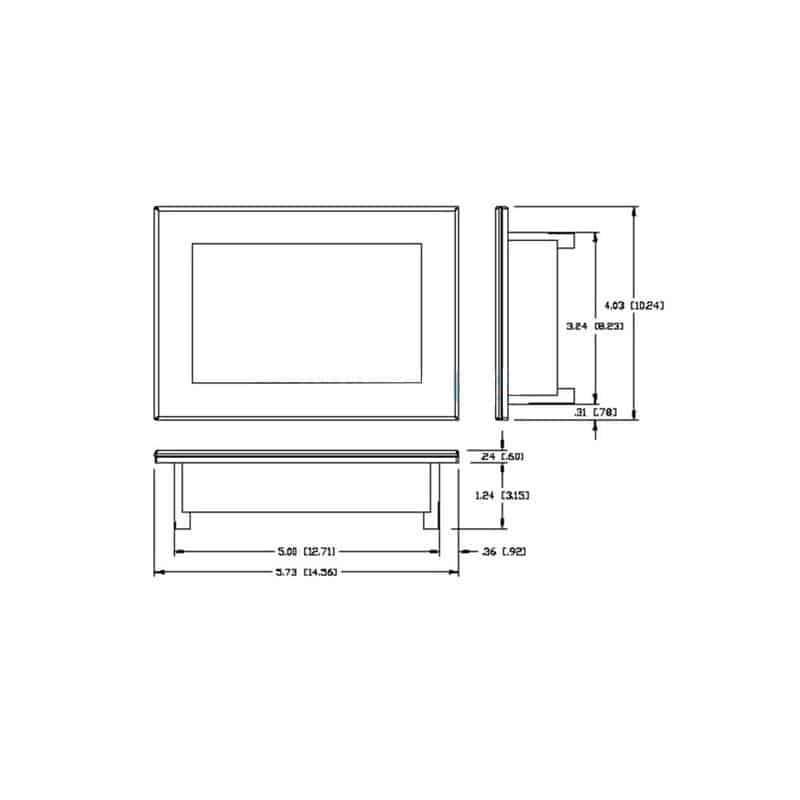

• Panel Dimensions: 146mm × 102mm

• Panel Thickness: 9mm (screen) / 23mm (total depth)

• Required Cutout Size: 128mm × 83mm

• Cable Length: 2.1 metres (7 feet)

• Connector Type: 4-Pin Molex

• Operating Voltage: 12V DC

• Frame Colour: Clear / Transparent

• Panel Shape: Rectangular

• Waterproof: Yes – fully potted electronics

• Certification: CE Marked

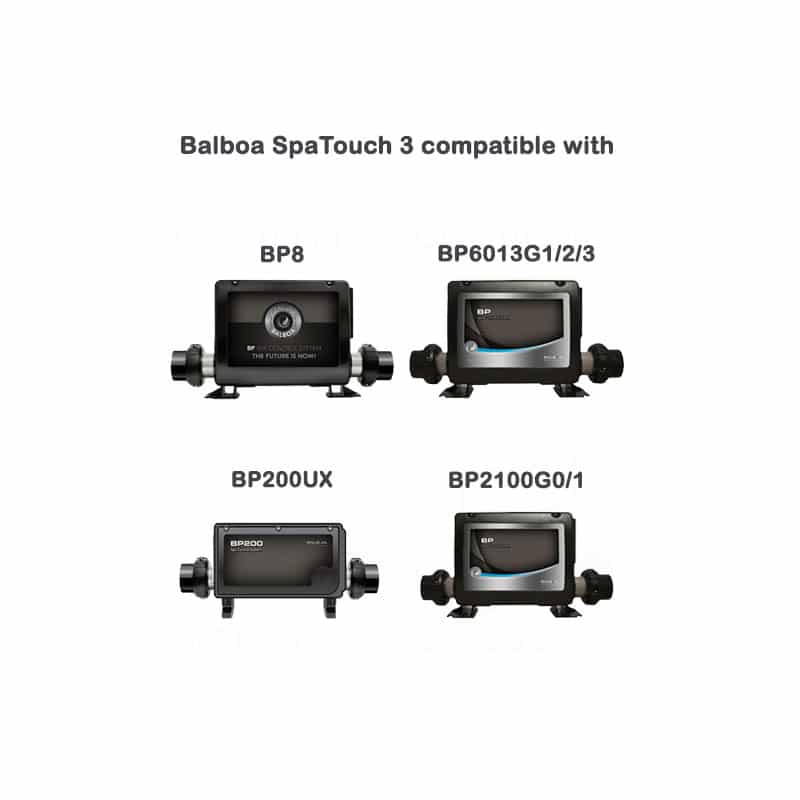

Compatible Balboa BP Series Spa Packs

This Spa Touch 3 Clear Panel is compatible with:

• BP100

• BP200G1 / G2 / G3

• BP200UX

• BP501G1 / G2 / G3

• BP600

• BP601

• BP6013G1 / 3G2 / 3G3

• BP2000G1 / G2 / G3

• BP2100G1 / G2 / G3

• BP7

System must support TP800 or TP900 topside panels for full functionality.

Limited Compatibility

Some systems supporting TP400 or TP600 may operate but may not display all equipment screens correctly.

Not Compatible With

• Balboa EL Series

• Balboa GL Series

• Balboa GS Series

These systems require VL Series topside controls.

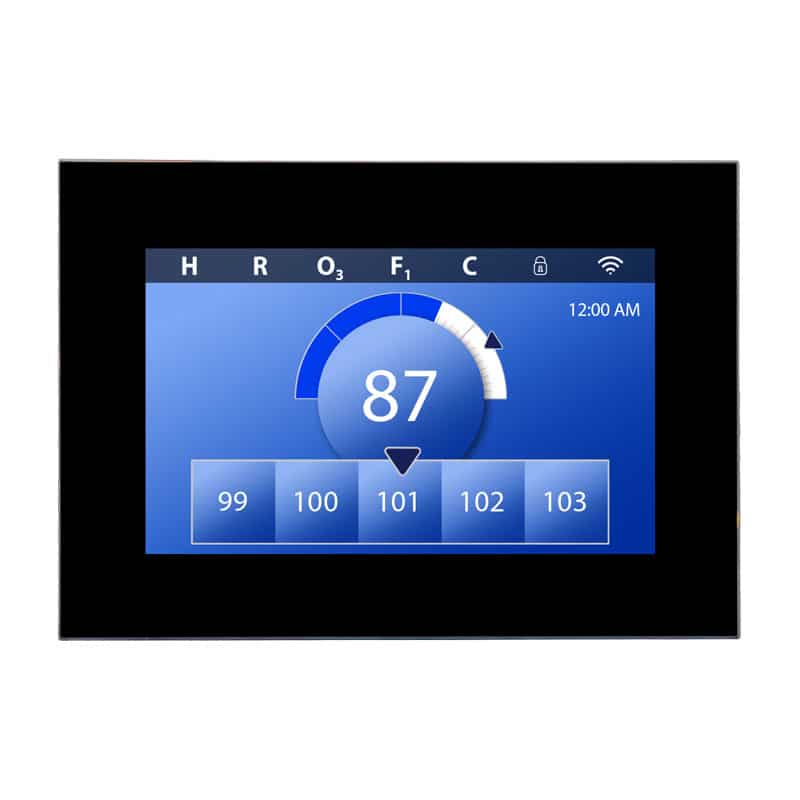

Display & Control Functions

The intuitive interface provides complete spa management, including:

• Temperature adjustment (set point & live temperature display)

• Jet control (low/high/off)

• Lighting control including Chromazon3™ features

• Filter cycle programming (F1 / F2)

• Ready and Rest heating modes

• Clean-up cycle activation

• Panel lock for safety

• Real-time system status indicators

Diagnostic error codes displayed directly on screen include:

• OH – Overheat

• Pr – Priming Mode

• dr – Inadequate water

• HL – High limit switch

• FLO – Flow issue

Installation Overview

Installation is straightforward for compatible systems:

1. Disconnect spa power at isolator.

2. Remove existing topside panel.

3. Unplug old 4-pin Molex connector.

4. Route new Spa Touch 3 cable to spa pack.

5. Connect to designated Molex port.

6. Secure panel into 128mm × 83mm cutout.

7. Restore power and test touchscreen functionality.

Professional installation is recommended if unfamiliar with spa electrical systems.

Why Choose the Balboa Spa Touch 3 Clear Panel?

• Genuine OEM Balboa component

• Modern transparent styling

• Industry-leading touchscreen clarity

• Waterproof and long-lasting design

• Seamless BP Series integration

• Ideal replacement for TP800 and TP900 panels

Whether replacing a faulty topside or upgrading to a brighter, more modern interface, the Balboa Spa Touch 3 Clear Panel delivers precision control, reliability, and premium spa performance.
