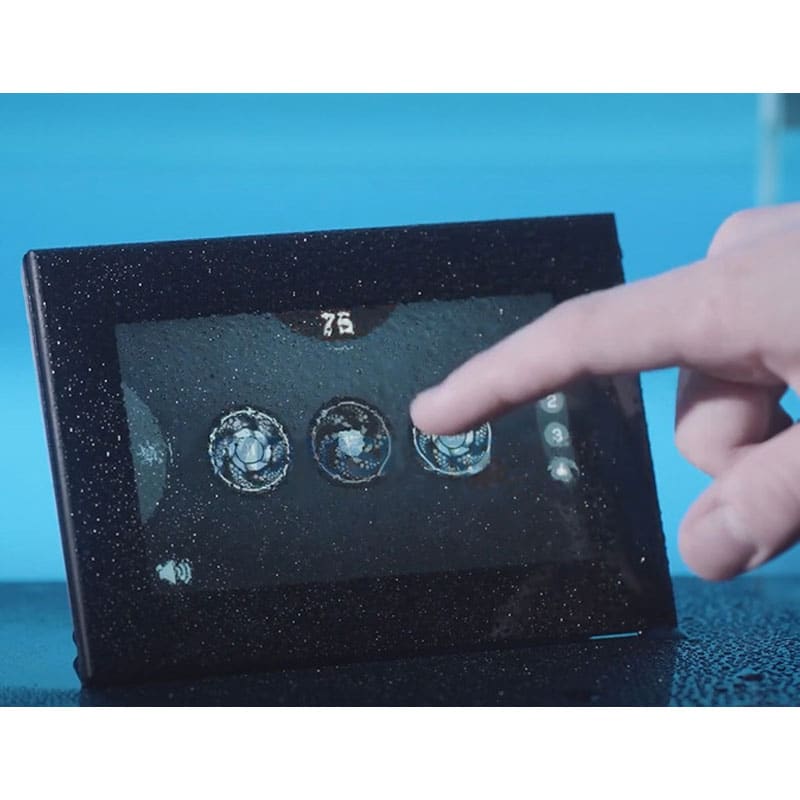

The Balboa SpaTouch 4 (ST4) is the latest generation 5-inch touchscreen topside control panel designed for seamless integration with Balboa BP Series spa systems. Featuring built-in WiFi and Bluetooth, this advanced hot tub control panel delivers complete spa management directly from the spa or remotely via the ControlMySpa™ app.
Engineered for modern hot tubs and luxury spa installations, the SpaTouch 4 offers a high-resolution capacitive touchscreen that is twice as bright as the SpaTouch 2, ensuring clear visibility in daylight or low-light conditions. Its sleek, button-free design provides intuitive swipe navigation, interactive icons, and real-time system notifications for effortless control.
With integrated Bluetooth connectivity, the ST4 allows direct control of Balboa Bluetooth Audio (bba™2) systems while also enabling wireless software updates. The fully potted construction with protective gel-sealed electronics ensures long-term durability and waterproof protection in demanding spa environments.
If you’re upgrading from a TP800 or TP900 topside panel, the SpaTouch 4 is the premium replacement solution.
Key Features
-
Built-in WiFi connectivity for remote spa control via the ControlMySpa™ app
-
Integrated Bluetooth for Balboa Bluetooth Audio (bba™2) control and software updates
-
5-inch high-resolution capacitive touchscreen display
-
2x brighter screen compared to SpaTouch 2
-

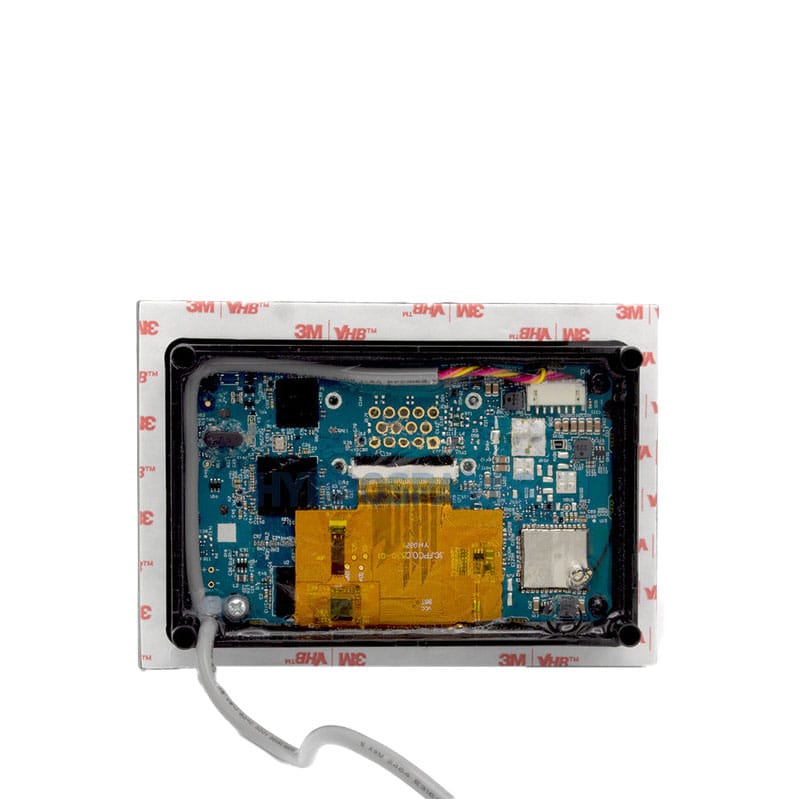

Fully potted waterproof construction with gel-sealed motherboard
-
Interactive on-screen icons with real-time status notifications
-
No physical buttons – sleek, modern touchscreen interface
-
Compatible with Clim8zone and Clim8zone II heat pumps
-
Wireless update capability via WiFi
-
Designed for Balboa BP Series systems supporting TP800 or TP900 panels
Technical Specifications
-
Brand: Balboa Water Group
-
Model: SpaTouch 4 (ST4)
-
Part Number: 57542 / 57542-01
-
Compatible System: Balboa BP Series
-
Operating Voltage: 12V
-
Display Type: Capacitive touchscreen
-
Display Size: 5-inch diagonal
-
Screen Thickness: 11 mm
-

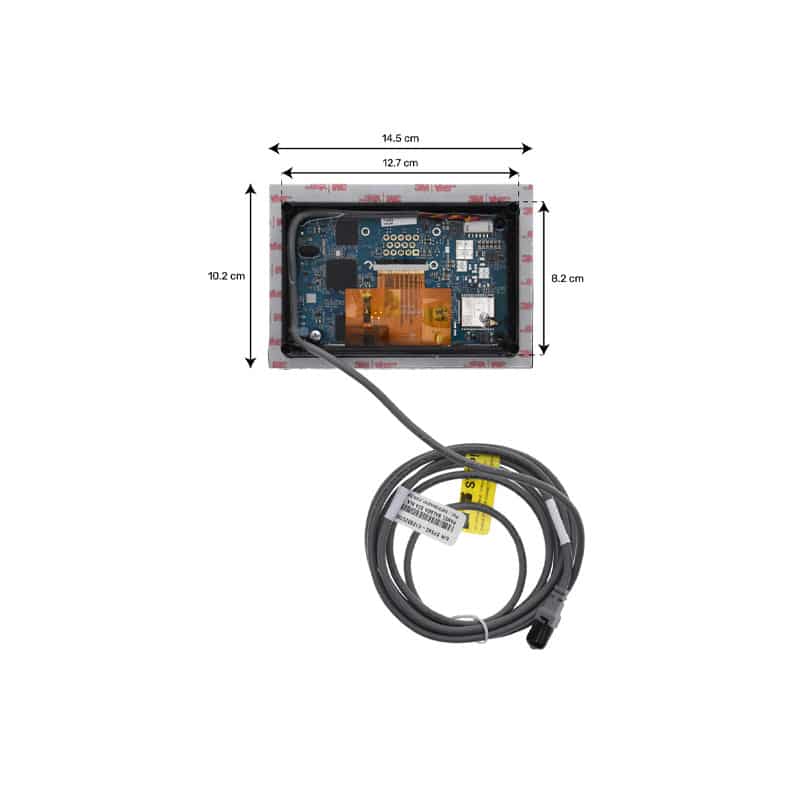

Panel Dimensions: 146 mm (L) × 102 mm (W) × 23 mm (D)
-
Cutout Size: 128 mm × 83 mm
-
Connection Type: 4-pin Molex connector
-
WiFi: Built-in
-
Bluetooth: Built-in
-
App Compatibility: ControlMySpa™
-
Audio Compatibility: Balboa Bluetooth Audio (bba™2)
-
Heat Pump Compatibility: Clim8zone & Clim8zone II
-
Waterproofing: Fully potted sealed electronics
-
Frame Colour: Black
Compatibility
The Balboa SpaTouch 4 touchscreen control panel is compatible with all BP Series spa packs that support TP800 and/or TP900 topside panels, including:
-
BP100
-
BP200 (G1, G2, G3)
-
BP200UX
-
BP501
-
BP600 / BP601
-
BP6013 (G1, G2, G3)
-
BP2000
-
BP2100 (G1, G2, G3)
-
BP7
Also compatible with:
-
TP800 supported systems
-
TP900 supported systems
-
Clim8zone & Clim8zone II heat pumps
-
Balboa Bluetooth Audio (bba™2)
Important: Not suitable for systems limited to TP400 or TP600 only. Always verify compatibility before ordering.

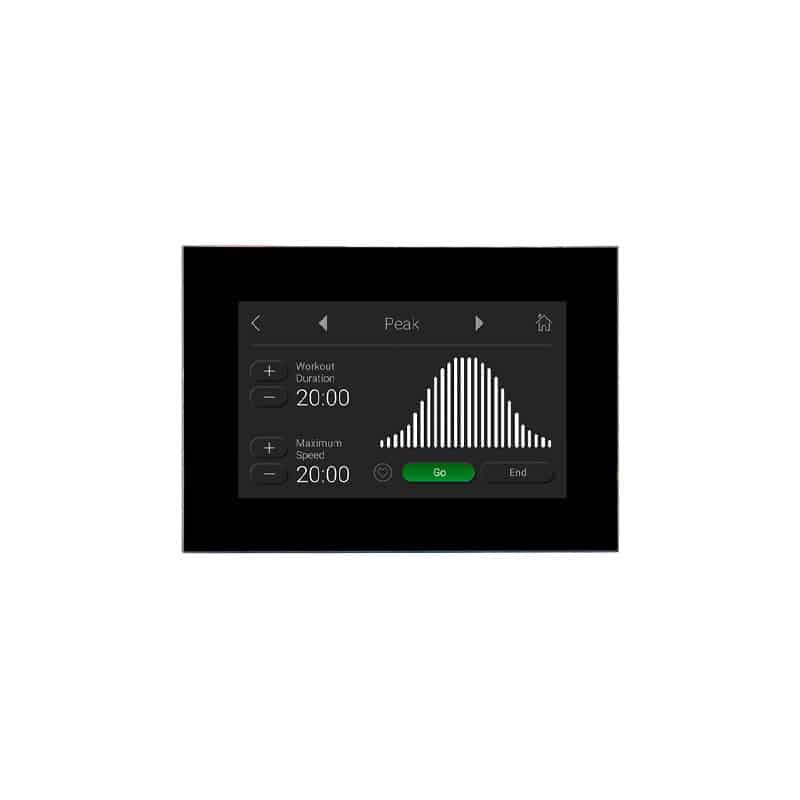

Display & Control Functions
The SpaTouch 4 provides full control over:
-
Water temperature adjustment
-
Pump and jet control
-
Chromazone lighting and effects
-
Filtration cycles
-
Heat mode selection
-

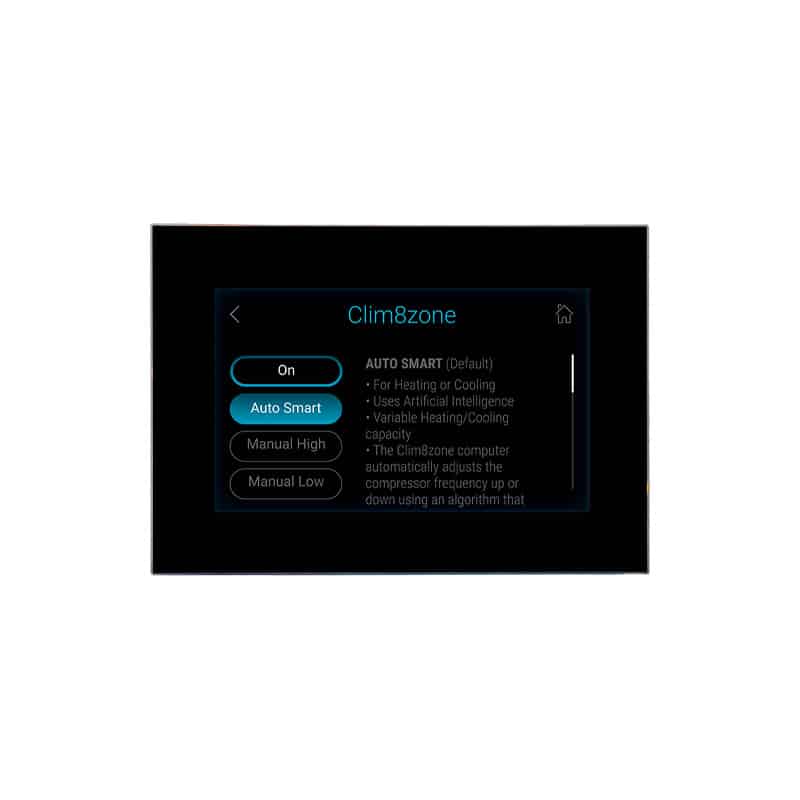

Clim8zone heat pump settings
-
Bluetooth audio controls
-
WiFi status and remote monitoring
Swipe navigation allows fast access to system settings, devices, music controls, and programming menus. One-tap sleep mode conserves power when not in use.
Remote Control via ControlMySpa™
Thanks to built-in WiFi, the SpaTouch 4 connects directly to the ControlMySpa™ app, enabling:
-
Remote temperature adjustment
-
Equipment activation from anywhere
-
Real-time spa monitoring
-
Push notifications
-
Pre-heat before arriving home
This makes the SpaTouch 4 one of the most advanced WiFi spa control panels available for Balboa BP systems.
