Premium 12V Touchscreen Panel for Balboa BP Spa Systems
Upgrade your hot tub control with the Balboa Spa Touch ST3+ Black Panel, a large-format touchscreen topside control designed specifically for Balboa BP Series spa packs. Combining modern aesthetics with advanced functionality, this high-performance control panel delivers intuitive operation, enhanced screen clarity, and reliable system diagnostics.

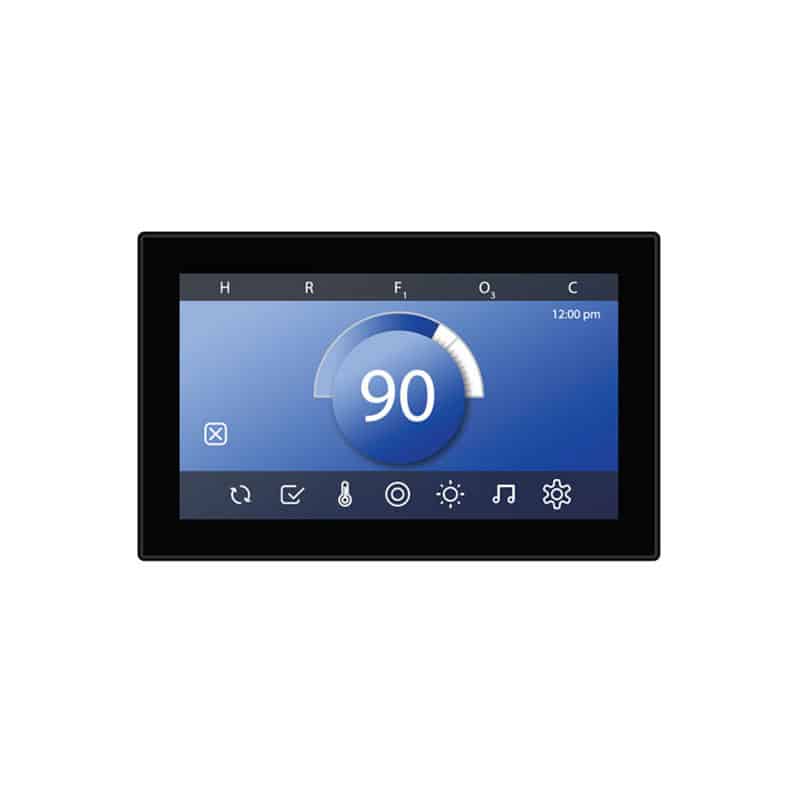

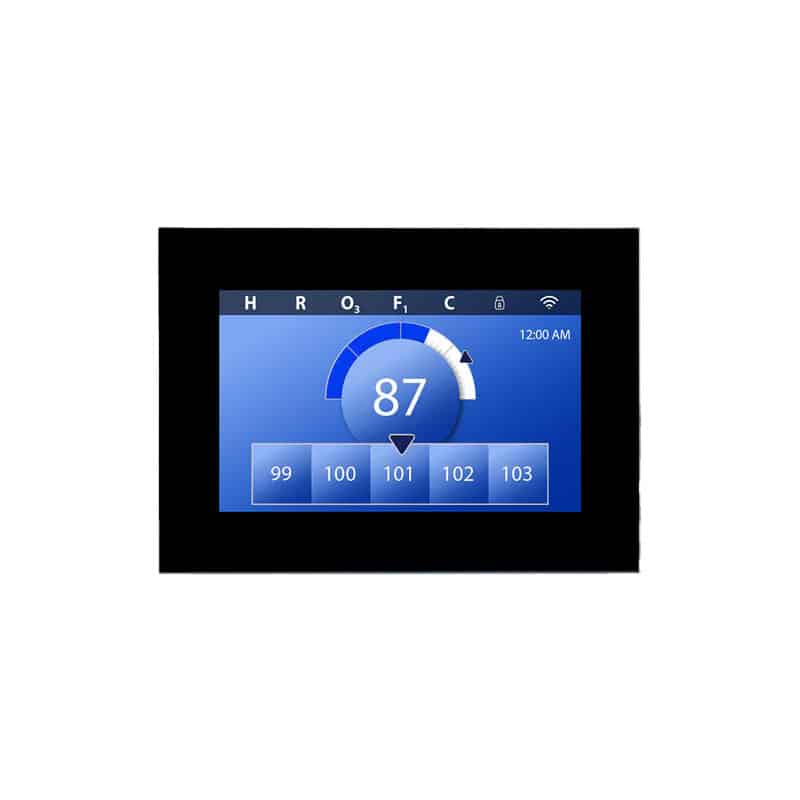

Engineered for seamless compatibility with BP systems, the ST3+ features a Hi-Tec large face digital touchscreen that clearly displays temperature settings, equipment status, time functions, and diagnostic error codes — making spa management effortless.
Key Features & Benefits
-
12V Full Touchscreen Interface – Responsive, easy-to-use digital control
-
Large Hi-Tec Display Screen – Improved readability and visibility in all lighting conditions
-
Advanced Diagnostic Display – Clearly shows Balboa BP error codes for faster troubleshooting
-

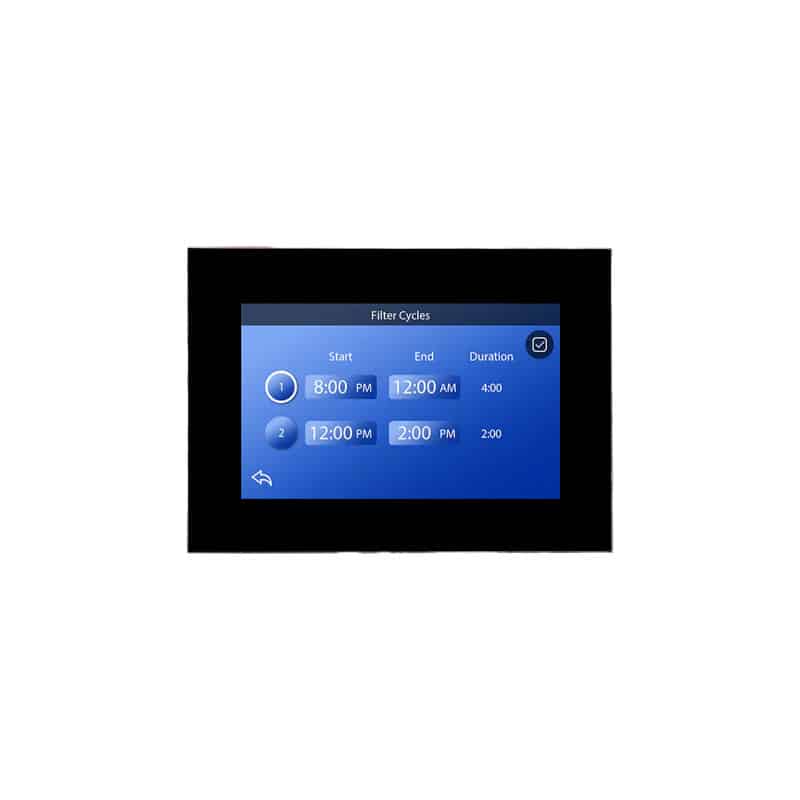

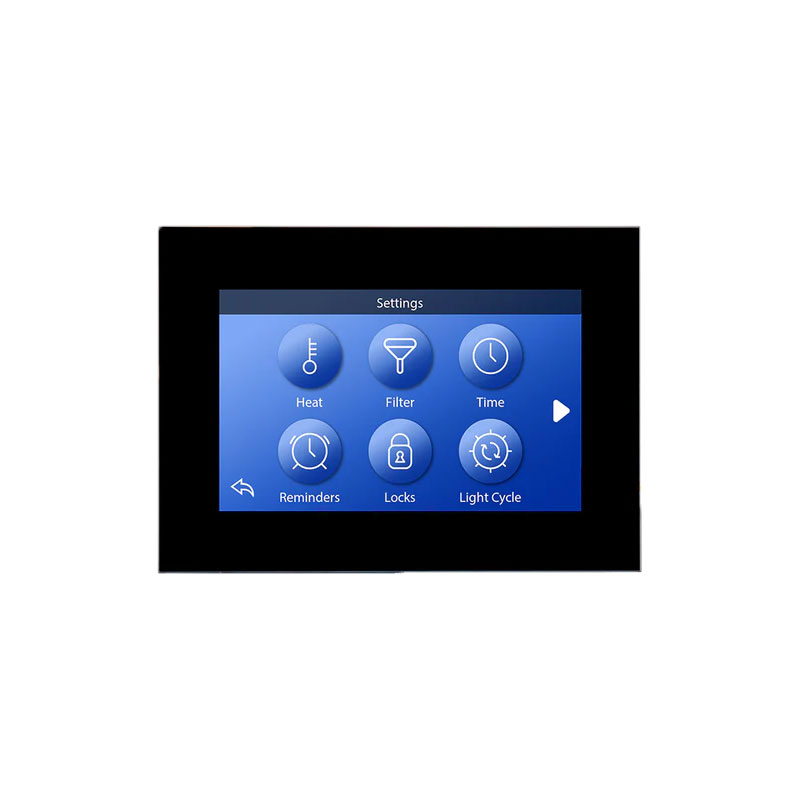

Time & Programming Functions – Manage filtration cycles, heat modes, and system scheduling
-
BP Series Exclusive Compatibility – Designed specifically for Balboa BP spa packs
-
Sleek Black Finish – Modern, minimalist design to complement dark spa surrounds
-

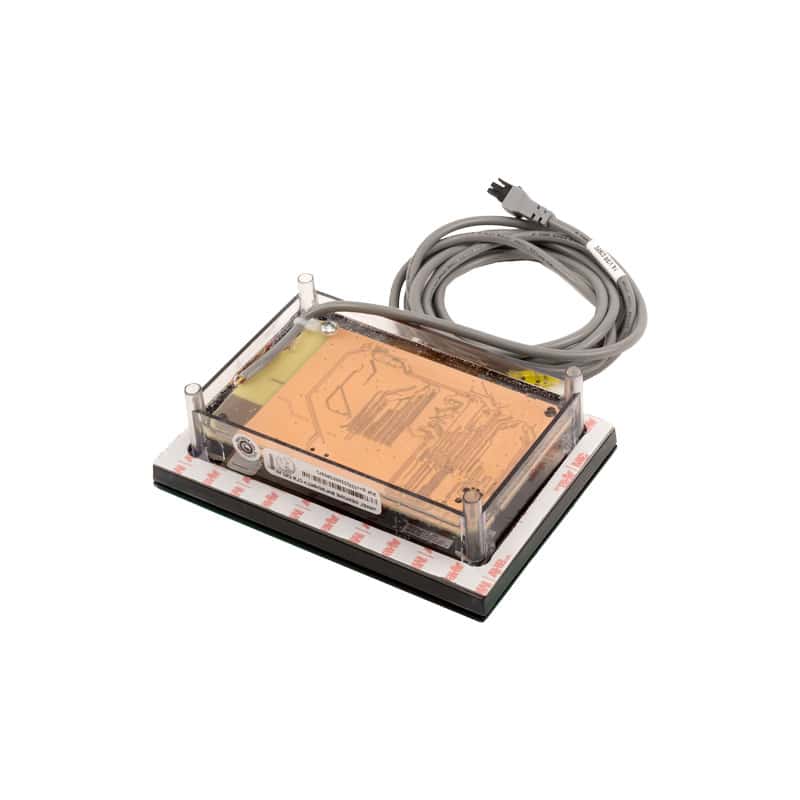

Secure 4-Pin Grid Connector – Reliable connection using 4 black plastic pins
Technical Specifications
-
Brand: Balboa Water Group
-
Model: Spa Touch ST3+ (Black Panel)
-
System Compatibility: Balboa BP Series
-
Operating Voltage: 12V DC
-

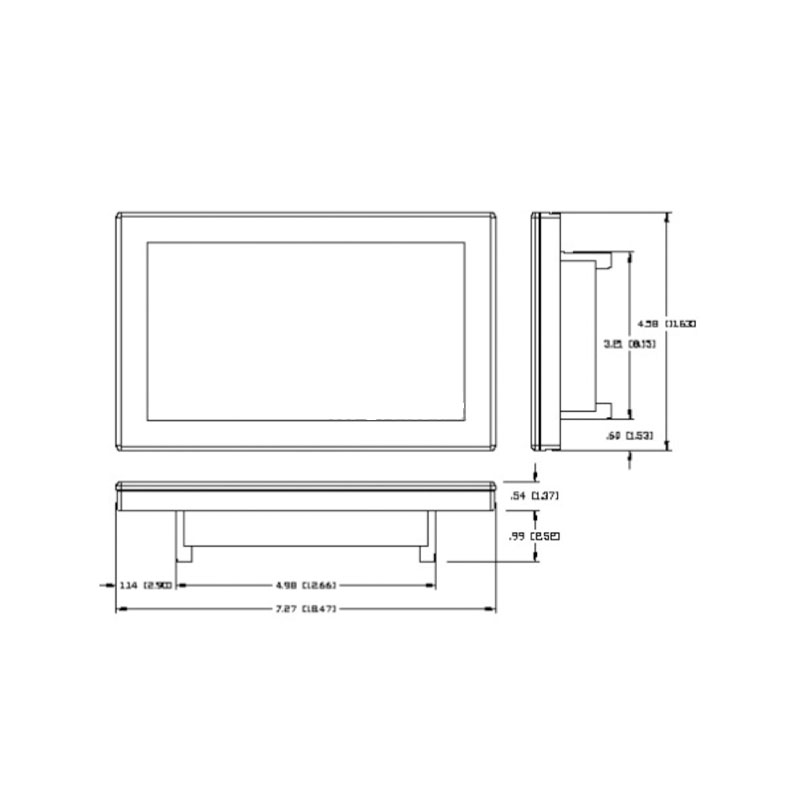

Panel Dimensions: 185 mm (L) × 116 mm (W)
-
Interface Type: Capacitive Touchscreen
-
Connection Type: 4-pin grid formation
-
Screen Type: Hi-Tec Digital Large Face Display
-
Frame Colour: Black
Compatibility
Compatible With:
✔ Balboa BP Series spa packs
Not Compatible With:
✖ Balboa GS Series
✖ Balboa GL Series
✖ Balboa EL Series
✖ Non-Balboa control systems
Important: Always verify your spa pack model before ordering. Installing an incompatible topside panel may result in system errors or non-functioning controls.
Why Choose the Balboa Spa Touch ST3+?
The ST3+ is the larger screen variant within the SpaTouch 3 range, offering improved visibility and a premium user experience. Whether replacing a faulty panel or upgrading from an older TP series control, this touchscreen delivers reliable performance and enhanced spa functionality.
Installation Overview
-
Disconnect power at the main isolator
-
Remove the existing topside control
-
Disconnect the current cable from the spa pack
-
Connect the ST3+ 4-pin connector
-
Secure panel into cutout
-
Restore power and test
Professional installation is recommended if you are unfamiliar with spa electrical systems.
